Create a custom widget

Widgets provide powerful features that are used to add dynamic or static content to store's pages. Here are the widgets that are available by default:

• CMS Page Link
• CMS Static Block
• Catalog Category Link
• Catalog New Products List
• Catalog Product Link
• Catalog Products List
• Orders and Returns
• Recently Compared Products
• Recently Viewed Products

Configuration options

This tutorial shows you how to create and insert your own widget on the frontend.

Step 1. Declaring the widget

etc/widget.xml

Copy
<widgets xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Widget:etc/widget.xsd">
    <widget class="ExampleCorp\Learning\Block\Widget\Test" id="orange_test_widget">
        <label>My New Widget</label>
        <description>This is a test widget!!!</description>
        <parameters>
            ...
        </parameters>
        <containers>
            ...
        </containers>
    </widget>
</widgets>
Copied to your clipboard
<widgets xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Widget:etc/widget.xsd">
    <widget class="ExampleCorp\Learning\Block\Widget\Test" id="orange_test_widget">
        <label>My New Widget</label>
        <description>This is a test widget!!!</description>
        <parameters>
            ...
        </parameters>
        <containers>
            ...
        </containers>
    </widget>
</widgets>

We need to also add a dependency to Magento_Widget in the module.xml file.

etc/module.xml

Copy
...
<sequence>
    <module name="Magento_Widget" />
</sequence>
...
Copied to your clipboard
...
<sequence>
    <module name="Magento_Widget" />
</sequence>
...

Step 2. Adding widget parameters

As a parameter, we are able to use any of these field types:

• text
• select
• multiselect
• block

Add a text and a select field:

Copy
<widgets xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Widget:etc/widget.xsd">
    <widget class="ExampleCorp\Learning\Block\Widget\Test" id="orange_test_widget">
        ...
        <parameters>
            <parameter name="title" xsi:type="text" required="true" visible="true" sort_order="10">
                <label>Label</label>
            </parameter>
            <parameter name="size" xsi:type="select" visible="true" required="true" sort_order="20">
                <label translate="true">Size</label>
                <options>
                    <option name="s" value="S">
                        <label>S</label>
                    </option>
                    <option name="m" value="M" selected="true">
                        <label>M</label>
                    </option>
                    <option name="l" value="L">
                        <label>L</label>
                    </option>
                </options>
            </parameter>
        </parameters>
    </widget>
</widgets>
Copied to your clipboard
<widgets xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Widget:etc/widget.xsd">
    <widget class="ExampleCorp\Learning\Block\Widget\Test" id="orange_test_widget">
        ...
        <parameters>
            <parameter name="title" xsi:type="text" required="true" visible="true" sort_order="10">
                <label>Label</label>
            </parameter>
            <parameter name="size" xsi:type="select" visible="true" required="true" sort_order="20">
                <label translate="true">Size</label>
                <options>
                    <option name="s" value="S">
                        <label>S</label>
                    </option>
                    <option name="m" value="M" selected="true">
                        <label>M</label>
                    </option>
                    <option name="l" value="L">
                        <label>L</label>
                    </option>
                </options>
            </parameter>
        </parameters>
    </widget>
</widgets>

Step 3. Check the widget

Run the following commands to apply the module dependency declared in module.xml.

Copy
bin/magento module:disable Vendor_Module
Copied to your clipboard
bin/magento module:disable Vendor_Module

Copy
bin/magento module:enable Vendor_Module
Copied to your clipboard
bin/magento module:enable Vendor_Module

where Vendor_Module is replaced with the module name.

After clearing the cache, the new widget My New Widget should be available.

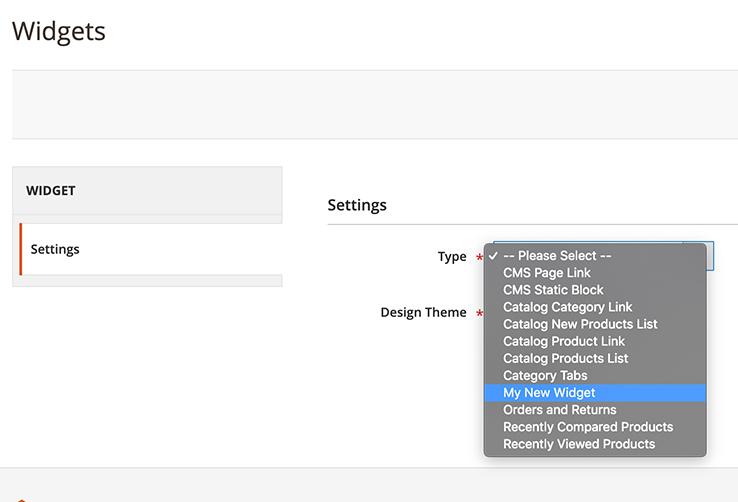

To add it to the homepage, below the page content:

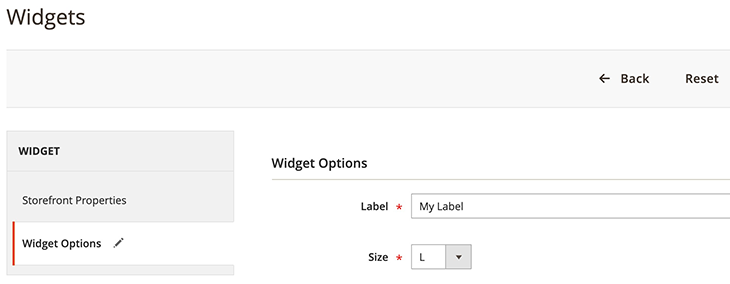

After selecting the widget type and the layout location, we should be able to see the widget's options.

Step 4. Create the block

Create the block class that we provided on the widget's initialization, responsible for rendering it on the frontend.

ExampleCorp/Learning/Block/Widget/Test

Copy
namespace ExampleCorp\Learning\Block\Widget;

use Magento\Framework\View\Element\Template;
use Magento\Widget\Block\BlockInterface;

class Test extends Template implements BlockInterface
{
    protected $_template = "widget/test.phtml";
}
Copied to your clipboard
namespace ExampleCorp\Learning\Block\Widget;

use Magento\Framework\View\Element\Template;
use Magento\Widget\Block\BlockInterface;

class Test extends Template implements BlockInterface
{
    protected $_template = "widget/test.phtml";
}

Step 5. Create the template

And finally, create the template that will be used for showing the widget's data on the frontend.

ExampleCorp/Learning/view/frontend/templates/widget/test.phtml

Copy
<?php
/** @var \Magento\Framework\View\TemplateEngineInterface $this */
/** @var \ExampleCorp\Learning\Block\Widget\Test $block */
/** @var \Magento\Csp\Api\InlineUtilInterface $csp */
/** @var \Magento\Framework\Escaper $escaper */
/** @var \Magento\Framework\View\Helper\SecureHtmlRenderer $secureRenderer */
?>
<h3><?= $escaper->escapeHtml($block->getData('title')) ?></h3>
<h3><?= $escaper->escapeHtml(__('Size:')) ?> <?= $escaper->escapeHtml($block->getData('size')) ?></h3>
Copied to your clipboard
<?php
/** @var \Magento\Framework\View\TemplateEngineInterface $this */
/** @var \ExampleCorp\Learning\Block\Widget\Test $block */
/** @var \Magento\Csp\Api\InlineUtilInterface $csp */
/** @var \Magento\Framework\Escaper $escaper */
/** @var \Magento\Framework\View\Helper\SecureHtmlRenderer $secureRenderer */
?>
<h3><?= $escaper->escapeHtml($block->getData('title')) ?></h3>
<h3><?= $escaper->escapeHtml(__('Size:')) ?> <?= $escaper->escapeHtml($block->getData('size')) ?></h3>

Step 6. Clean Cache

Clean the cache with the following command:

Copy
bin/magento cache:clean
Copied to your clipboard
bin/magento cache:clean

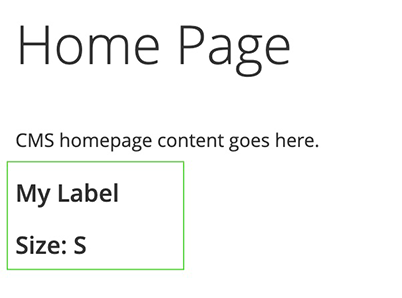

Result

The widget is now shown on the frontend.
