API date-trended KPI basic report

The Analytics 2.0 Report API allows you to create, retrieve, or update basic and advanced date-trended KPI reports. You can use the example in this guide as a programattically-recurring report. It uses the same data and methods that are used in the UI.

This guide provides instructions for a basic KPI report of Visits, Orders, and Revenue metrics for the Day dimension. For instructions on advanced KPI reports, see the Advanced Date-trended API Report Guide.

Adobe may add optional request and response members (name/value pairs) to existing API objects at any time and without notice or changes in versioning.

The report endpoint described in this guide is routed through analytics.adobe.io. To use it, you will need to first create a client with access to the Adobe Analytics Reporting API. For more information, refer to Getting started with the Analytics API.

Report features

This guide shows an example for reporting key metrics over the past 30 days. You can use the requests and responses in this example to produce similar reports for the following purposes:

Populating dashboards
Exporting data to CSV files
Feeding business-intelligence tools
Connecting to cloud data warehouses
Scheduling automated KPI updates

Example visualization

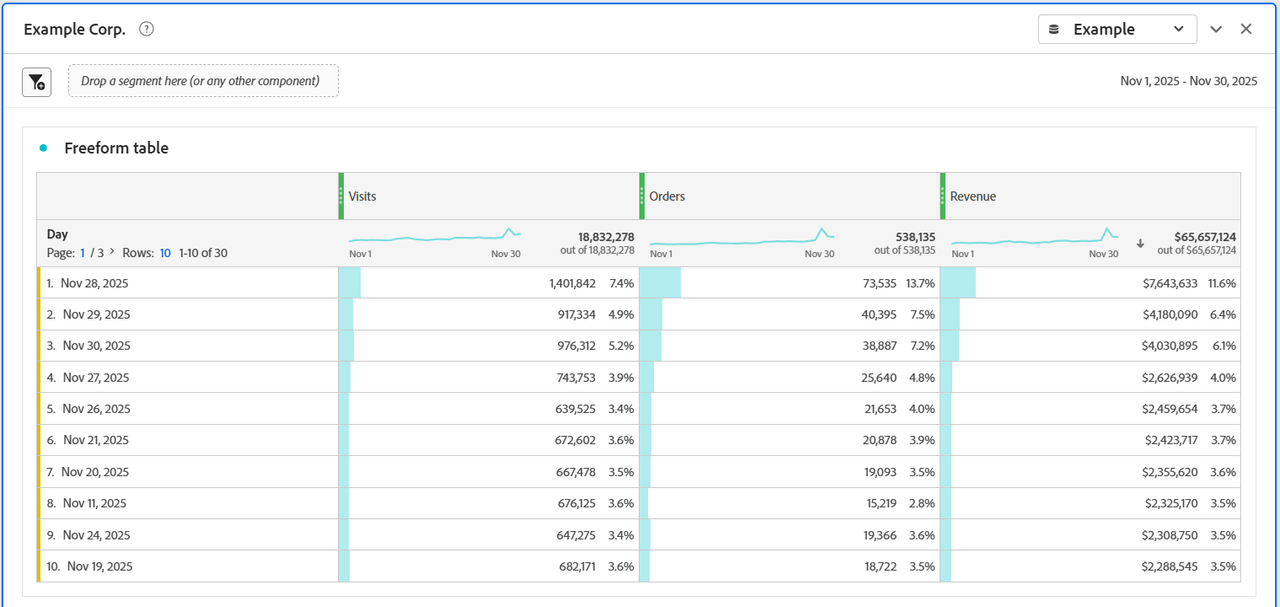

In Analysis Workspace, this example KPI report might include the following free-form table:

kpitable

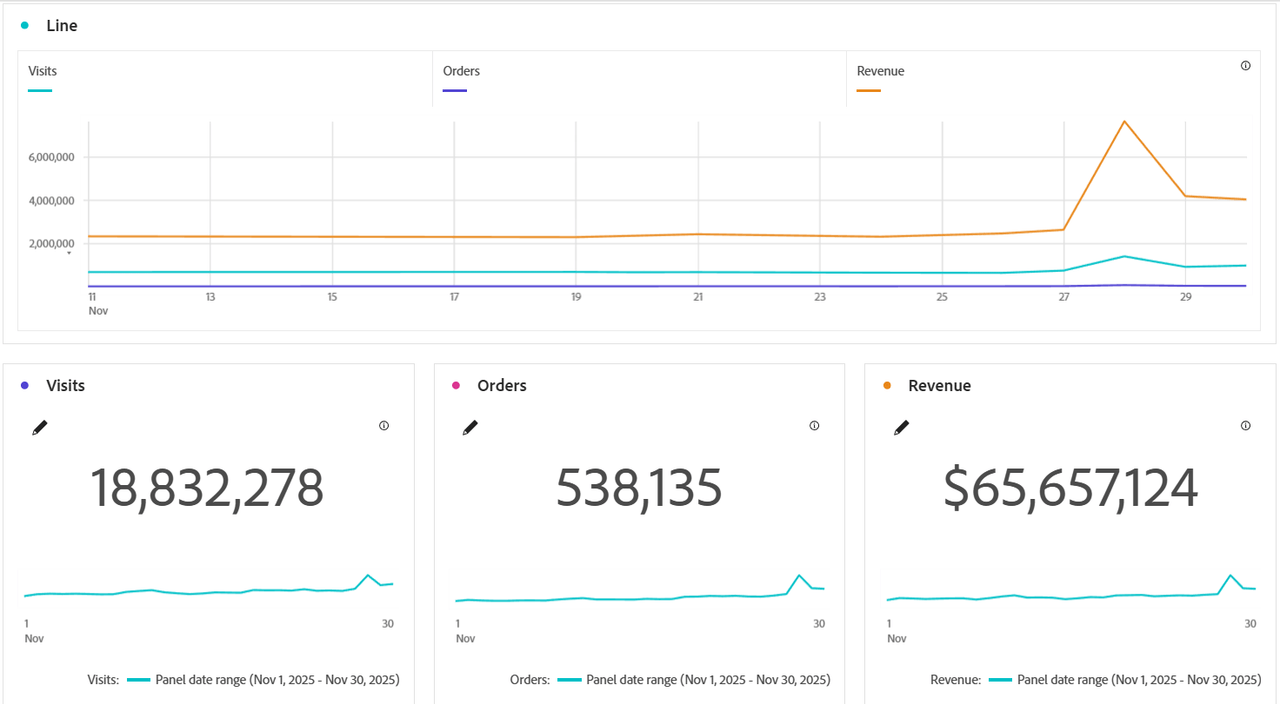

And the following line graph and number summary visualizations of the same data:

kpiline

Report APIs provide data, not visualizations

When you design reports via the Report API, you are creating the data foundation used by Analysis Workspace or another intelligence tool. API structures do not specify the presentation layers built on top of the data. You will not see a visualization parameter type in the JSON request or response.

Request the date-trended data

To request the data:

Use the following URI for your POST HTTP call: POST https://analytics.adobe.io/api/{global-company-id}/reports. To find your Global Company ID, you can use the Discovery API.
Use the example request JSON below as a template for requesting the data. Provide your desired date range in the request with any other modifications to the dimension or example key metrics.

Click the Request tab in the following example to see a POST request corresponding to the data shown in the visualizations above. Click the Response tab to see a successful JSON response for the request.

Example request

Example response

curl -X 'POST' \
  'https://analytics.adobe.io/api/{global-company-id}/reports' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'x-api-key: {API-key}' \
  -H 'Authorization: {Bearer-token}
  -d '{REQUESTJSON}
{
    "rsid": "examplersid",
    "globalFilters": [
        {
            "type": "dateRange",
            "dateRange": "2025-11-01T00:00:00.000/2025-12-01T00:00:00.000"
        }
    ],
    "metricContainer": {
        "metrics": [
            {
                "columnId": "0",
                "id": "metrics/visits"
            },
            {
                "columnId": "1",
                "id": "metrics/orders"
            },
            {
                "columnId": "2",
                "id": "metrics/revenue",
                "sort": "desc"
            }
        ]
    },
    "dimension": "variables/daterangeday",
    "settings": {
        "countRepeatInstances": true,
        "includeAnnotations": true,
        "nonesBehavior": "return-nones",
        "limit": 10,
        "page": 0
    },
    "statistics": {
        "functions": [
            "col-max",
            "col-min"
        ]
    },
    "capacityMetadata": {
        "associations": [
            {
                "name": "applicationName",
                "value": "Analysis Workspace UI"
            },
            {
                "name": "projectId",
                "value": "695da79bc917a51999999999"
            },
            {
                "name": "projectName",
                "value": "KPI by API"
            },
            {
                "name": "panelName",
                "value": "Freeform table"
            }
        ]
    }
}

Copied to your clipboard
curl -X 'POST' \
  'https://analytics.adobe.io/api/{global-company-id}/reports' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'x-api-key: {API-key}' \
  -H 'Authorization: {Bearer-token}
  -d '{REQUESTJSON}
{
    "rsid": "examplersid",
    "globalFilters": [
        {
            "type": "dateRange",
            "dateRange": "2025-11-01T00:00:00.000/2025-12-01T00:00:00.000"
        }
    ],
    "metricContainer": {
        "metrics": [
            {
                "columnId": "0",
                "id": "metrics/visits"
            },
            {
                "columnId": "1",
                "id": "metrics/orders"
            },
            {
                "columnId": "2",
                "id": "metrics/revenue",
                "sort": "desc"
            }
        ]
    },
    "dimension": "variables/daterangeday",
    "settings": {
        "countRepeatInstances": true,
        "includeAnnotations": true,
        "nonesBehavior": "return-nones",
        "limit": 10,
        "page": 0
    },
    "statistics": {
        "functions": [
            "col-max",
            "col-min"
        ]
    },
    "capacityMetadata": {
        "associations": [
            {
                "name": "applicationName",
                "value": "Analysis Workspace UI"
            },
            {
                "name": "projectId",
                "value": "695da79bc917a51999999999"
            },
            {
                "name": "projectName",
                "value": "KPI by API"
            },
            {
                "name": "panelName",
                "value": "Freeform table"
            }
        ]
    }
}

{
    "totalPages": 3,
    "firstPage": true,
    "lastPage": false,
    "numberOfElements": 10,
    "number": 0,
    "totalElements": 30,
    "columns": {
        "dimensions": [
            {
                "id": "variables/daterangeday",
                "dimensionColumnId": "0fd6feb6-a35c-48ff-ad57-33c8d2a83606",
                "type": "time"
            }
        ],
        "columnIds": [
            "0",
            "1",
            "2"
        ],
        "dimension": {
            "id": "variables/daterangeday",
            "dimensionColumnId": "0fd6feb6-a35c-48ff-ad57-33c999999999",
            "type": "time"
        }
    },
    "rows": [
        {
            "data": [
                1401842,
                73535,
                7643632.88
            ],
            "itemId": "1251028",
            "value": "Nov 28, 2025"
        },
        {
            "data": [
                917334,
                40395,
                4180090.2800000003
            ],
            "itemId": "1251029",
            "value": "Nov 29, 2025"
        },
        {
            "data": [
                976312,
                38887,
                4030894.64
            ],
            "itemId": "1251030",
            "value": "Nov 30, 2025"
        },
        {
            "data": [
                743753,
                25640,
                2626938.6
            ],
            "itemId": "1251027",
            "value": "Nov 27, 2025"
        },
        {
            "data": [
                639525,
                21653,
                2459653.5300000003
            ],
            "itemId": "1251026",
            "value": "Nov 26, 2025"
        },
        {
            "data": [
                672602,
                20878,
                2423716.52
            ],
            "itemId": "1251021",
            "value": "Nov 21, 2025"
        },
        {
            "data": [
                667478,
                19093,
                2355620.19
            ],
            "itemId": "1251020",
            "value": "Nov 20, 2025"
        },
        {
            "data": [
                676125,
                15219,
                2325169.57
            ],
            "itemId": "1251011",
            "value": "Nov 11, 2025"
        },
        {
            "data": [
                647275,
                19366,
                2308749.96
            ],
            "itemId": "1251024",
            "value": "Nov 24, 2025"
        },
        {
            "data": [
                682171,
                18722,
                2288544.73
            ],
            "itemId": "1251019",
            "value": "Nov 19, 2025"
        }
    ],
    "summaryData": {
        "filteredTotals": [
            18832278,
            538135,
            65657124.02
        ],
        "annotations": [],
        "totals": [
            18832278,
            538135,
            65657124.02
        ],
        "annotationExceptions": [],
        "col-max": [
            1401842,
            73535,
            7643632.88
        ],
        "col-min": [
            385434,
            7788,
            1058036.96
        ]
    },
    "oberonAdditionalProperties": [
        {
            "lookupTime": 0.00246924,
            "totalReportTime": 6.863,
            "maxReportTime": 0.404759,
            "reportQueueTime": 0.000122,
            "capacityQueueTime": 0,
            "complexityScore": 0.33,
            "complexityMonthBoundaries": 3,
            "complexityColumns": 3,
            "complexityUniqueSegments": 0,
            "requestTime": 0.436879,
            "unhashTime": 0.000089671
        }
    ],
    "resultsRefreshDates": [
        "2025-12-01T19:38:07"
    ]
}
Copied to your clipboard
{
    "totalPages": 3,
    "firstPage": true,
    "lastPage": false,
    "numberOfElements": 10,
    "number": 0,
    "totalElements": 30,
    "columns": {
        "dimensions": [
            {
                "id": "variables/daterangeday",
                "dimensionColumnId": "0fd6feb6-a35c-48ff-ad57-33c8d2a83606",
                "type": "time"
            }
        ],
        "columnIds": [
            "0",
            "1",
            "2"
        ],
        "dimension": {
            "id": "variables/daterangeday",
            "dimensionColumnId": "0fd6feb6-a35c-48ff-ad57-33c999999999",
            "type": "time"
        }
    },
    "rows": [
        {
            "data": [
                1401842,
                73535,
                7643632.88
            ],
            "itemId": "1251028",
            "value": "Nov 28, 2025"
        },
        {
            "data": [
                917334,
                40395,
                4180090.2800000003
            ],
            "itemId": "1251029",
            "value": "Nov 29, 2025"
        },
        {
            "data": [
                976312,
                38887,
                4030894.64
            ],
            "itemId": "1251030",
            "value": "Nov 30, 2025"
        },
        {
            "data": [
                743753,
                25640,
                2626938.6
            ],
            "itemId": "1251027",
            "value": "Nov 27, 2025"
        },
        {
            "data": [
                639525,
                21653,
                2459653.5300000003
            ],
            "itemId": "1251026",
            "value": "Nov 26, 2025"
        },
        {
            "data": [
                672602,
                20878,
                2423716.52
            ],
            "itemId": "1251021",
            "value": "Nov 21, 2025"
        },
        {
            "data": [
                667478,
                19093,
                2355620.19
            ],
            "itemId": "1251020",
            "value": "Nov 20, 2025"
        },
        {
            "data": [
                676125,
                15219,
                2325169.57
            ],
            "itemId": "1251011",
            "value": "Nov 11, 2025"
        },
        {
            "data": [
                647275,
                19366,
                2308749.96
            ],
            "itemId": "1251024",
            "value": "Nov 24, 2025"
        },
        {
            "data": [
                682171,
                18722,
                2288544.73
            ],
            "itemId": "1251019",
            "value": "Nov 19, 2025"
        }
    ],
    "summaryData": {
        "filteredTotals": [
            18832278,
            538135,
            65657124.02
        ],
        "annotations": [],
        "totals": [
            18832278,
            538135,
            65657124.02
        ],
        "annotationExceptions": [],
        "col-max": [
            1401842,
            73535,
            7643632.88
        ],
        "col-min": [
            385434,
            7788,
            1058036.96
        ]
    },
    "oberonAdditionalProperties": [
        {
            "lookupTime": 0.00246924,
            "totalReportTime": 6.863,
            "maxReportTime": 0.404759,
            "reportQueueTime": 0.000122,
            "capacityQueueTime": 0,
            "complexityScore": 0.33,
            "complexityMonthBoundaries": 3,
            "complexityColumns": 3,
            "complexityUniqueSegments": 0,
            "requestTime": 0.436879,
            "unhashTime": 0.000089671
        }
    ],
    "resultsRefreshDates": [
        "2025-12-01T19:38:07"
    ]
}

Example request details

The JSON example provides a request for data of the top ten days of November 2025 in descending order, according to revenue. Note the following details:

On or near lines 12-13, the daterange is specified as November 1, 2025 to December 1, 2025.
On or near Lines 16-29, the metrics are specified as visits, orders, and revenue for columns 0, 1, and 2, respectively.
On or near line 29, a sort in descending order is specified for values in column 2 (revenue). This enables the ranking feature for the top days according to revenue.
On or near line 33, the dimension is specified as daterangeday.
On or near line 38, a limit is specified for the response to 10 days.
On or near lines 62-63, the metadata of Freeform table is asscociated with panelName.

Request parameters

The example request includes the following parameters in the payload:

Parameter	Req/Opt	Type	Description
`rsid`	required	string	report suite ID
`globalFilters`	optional	array	Contains `type`, `dateRange`, and `dateRangeId`
`type`	optional	string	The type of filter applied
`dateRange`	optional	string	The date range of the data
`dateRangeId`	optional	string	The label for the date range; e.g., `ThisMonth`
`metricContainer`	optional	object	Contains `metrics` array
`metrics`	optional	array	Contains `ColumnId`, `id`, and `sort`
`columnId`	optional	string	The column number in the table visualization, left to right, starting from `0`
`id`	optional	string	The name of the element for the column; e.g., the name of the `metric`
`sort`	optional	string	The sorting applied to the column data--`asc` or `desc`
`dimension`	required	string	The dimension used for the report
`settings`	optional	object	The settings requested for the reporting response, as specified by the parameters in the following five rows
`countRepeatInstances`	optional	boolean	Whether to count repeat instances of a returned metric
`includeAnnotations`	optional	boolean	Whether to include annotations in the response
`limit`	optional	integer	The maximum number of items to return in the response
`page`	optional	integer	The maximum number of pages to return in the response
`nonesBehavior`	optional	string	Excludes instances with values of `0` if set to `exclude-nones`
`statistics`	optional	object	Contains the `functions` array
`functions`	optional	array	Contains `col-max` and `col-min`
`col-max`	optional	string	The column maximum
`col-min`	optional	string	The column minimum
`capacityMetadata`	optional	object	Contains `associations` array
`associations`	optional	array	Contains `name` and `value` parameters for each type of metadata associated with report; e.g., `applicationName`, `projectId`, `projectName`, and `panelName`
`name`	optional	string	The associated category type of the associated metadata
`value`	optional	string	The actual name or title specified for the metadata category in the report

Example response

Click on the Response tab above to see the entire response. It shows the data for the top ten ranked days according to revenue. Note the following for the first three days returned:

November 28, 2025 (occurring on "Black Friday") had 1401842 Visits, 73535 Orders, and 7643632.88 dollars for Revenue.
November 29, 2025 (occurring during "Black Friday" weekend) had 917334 Visits, 40395 Orders, and 4180090.28 dollars for Revenue.
November 30, 2025 (occurring during "Black Friday" weekend) had 976312 Visits, 38887 Orders, and 4030894.64 dollars for Revenue.

Although the metrics data is rounded in the visualizations, it matches the data in the examples above.

Response parameters

The example response includes the following parameters:

Parameter	Type	Description
`totalPages`	integer	The total number of pages with data
`firstPage`	boolean	Whether to include the first page of results
`lastPage`	boolean	Whether to include the last page of results
`numberOfElements`	integer	The number of item elements in the report
`number`	integer	The number of pages, starting with `0`
`totalElements`	integer	Total number of elements in the report
`columns`	object	Contains column and `dimension` data
`dimension`	object	Contains `id` and `type`
`id`	string	Name of the dimension
`type`	string	The `dimension` ID data type
`columnIds`	string	The column number in the table visualization, left to right, starting from `0`
`rows`	container	Contains `itemId`, `value` and `data`
`itemId`	string	The item ID
`value`	string	The name specified for the `itemId` in the report
`data`	number($double)	The numerical values returned for the requested items
`summaryData`	object	Contains the ranked summary data information described in the following rows
`filteredTotals`	number($double)	The data totals after the specified filters are applied
`annotations`	string	Annotations for the summary data, if specified
`totals`	number($double)	The data totals
`annotationExceptions`	string	Exceptions for annotations
`col-max`	optional	The column maximum
`col-min`	optional	The column minimum

Partial Responses (206 Status Code)

A 206 status code indicates a partial response. This status code means that there were some columns in the reporting response that have errors. These errors can include any of the following:

Unauthorized Metric: User does not have access to the requested metric
Metric Not Enabled: The requested metric is not enabled in this report suite
Unauthorized Dimension: User does not have access to the requested dimension
Dimension Not Enabled: The requested dimension is not enabled in this report suite
Unauthorized Global Dimension: User does not have access to the global dimension for this request
Global Dimension Not Enabled: The global dimension for this request is not enabled in this report suite
Unexpected Number of Items: Anomaly Detection algorithm returned an unexpected number of anomalies
General Service Error: General Anomaly Detection service error

API date-trended KPI basic report

Report features.css-83mclq{margin-left:var(--spectrum-global-dimension-size-100);}

Example visualization.css-jmmyhj{margin-left:var(--spectrum-global-dimension-size-50);}

Report APIs provide data, not visualizations

Request the date-trended data

Example request details

Request parameters

Example response

Response parameters

Partial Responses (206 Status Code)

More help on this topic

Report features

Example visualization
