Getting Started with the Adobe Express Embed SDK

A step-by-step guide to setting up and integrating the Embed SDK into your web applications.

Introduction

Hi developers, and welcome to this tutorial! The Embed SDK is an amazing opportunity for any project, allowing you to launch Adobe Express directly from your web applications. This guide will walk you through setting up the credentials and starting to implement the SDK.

Prerequisites

Before you start, make sure you have the following:

• An Adobe account: use your existing Adobe ID or create one for free.
• Familiarity with HTML, CSS, JavaScript.
• Node.js is installed on your development machine.

Getting the credentials

The first crucial step is to acquire an API Key from the Adobe Developer Console; these credentials are required to authenticate your application with the Adobe Express Embed SDK. The process is discussed in great detail in the Quickstart guide, and we'll summarize it here.

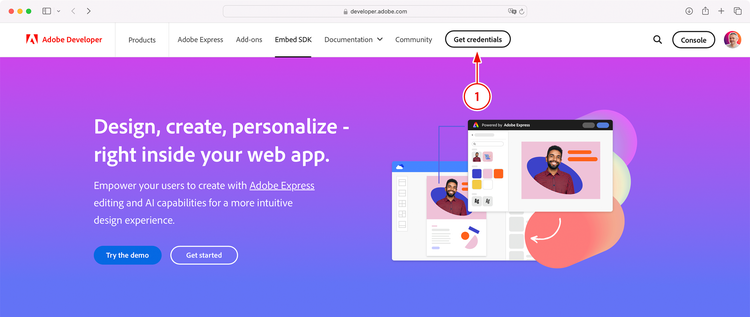

Visit the Adobe Express Embed SDK page on the Adobe Developer website, and click the Get credentials button.

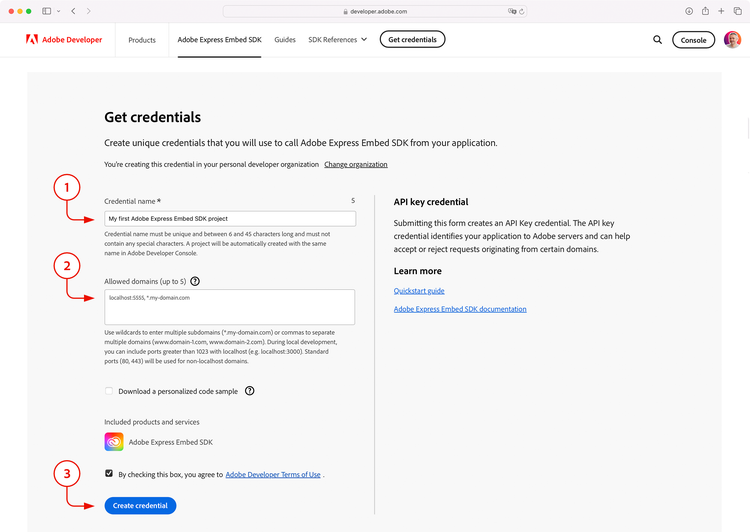

Log in with your Adobe ID if requested, or create a new account if you don't have one. You'll be then presented this screen:

1. In the Credential name field, add a unique title. It will correspond with the project folder created for your end users in Adobe Express, and must match what's later referred to as appName in the SDK initialization.
2. We'll test the Embed SDK locally: type localhost:5555 in the Allowed domain field—this is where you would add a list of the domains through which your application is served.

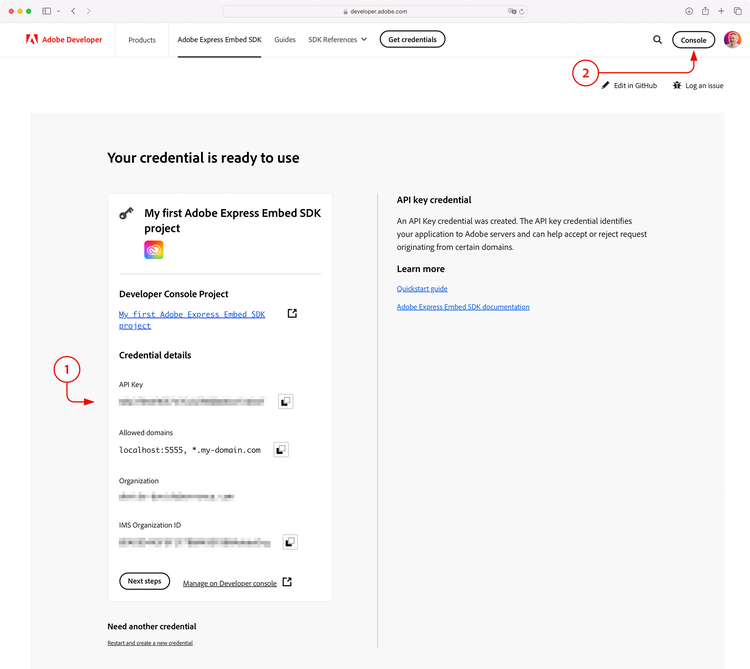

3. Agree to the Terms of Use, and click the Create credential button; your API key will be displayed on the screen under the Credential details (see 1 below).

The list of domains can be edited anytime, as well as the project name, clicking the Console button in the top-right corner. Please refer to the Quickstart guide for more information.

Running the sample project

Now that you have the API key let's set up the sample project to test the Embed SDK locally. Clone the embed-sdk-getting-started sample from GitHub and navigate to the project directory. Locate the .env file and replace your API Key there:

Copy
VITE_API_KEY="your-api-key-here!"
Copied to your clipboard
VITE_API_KEY="your-api-key-here!"

Now, you can install the dependencies and run the sample with the following two simple commands:

Copy
npm install
npm run start
Copied to your clipboard
npm install
npm run start

The web application will be served at localhost:5555; open your browser and navigate to this address to see it in action.

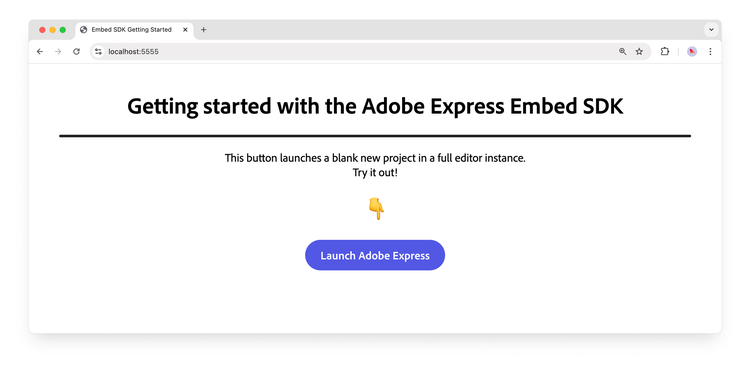

It is just a simple web page with one button: click it, and the Adobe Express logo will whirl its rainbow gradient to signal that the magic is about to happen. And then, voilà!

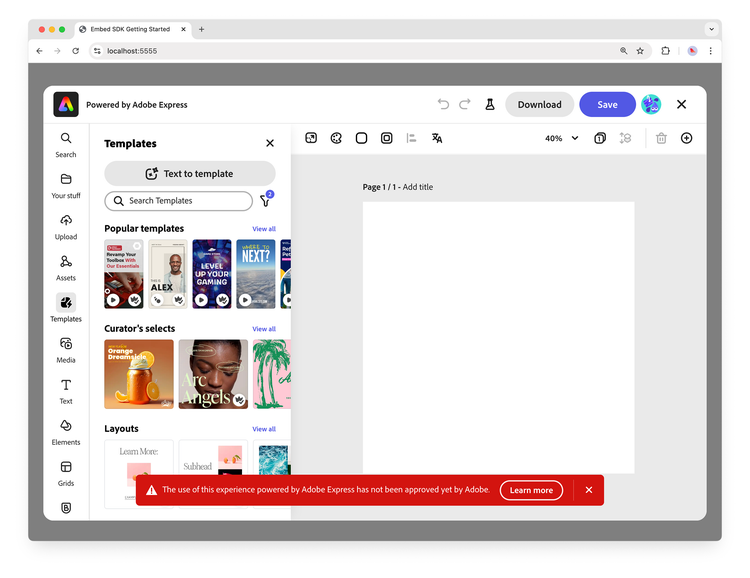

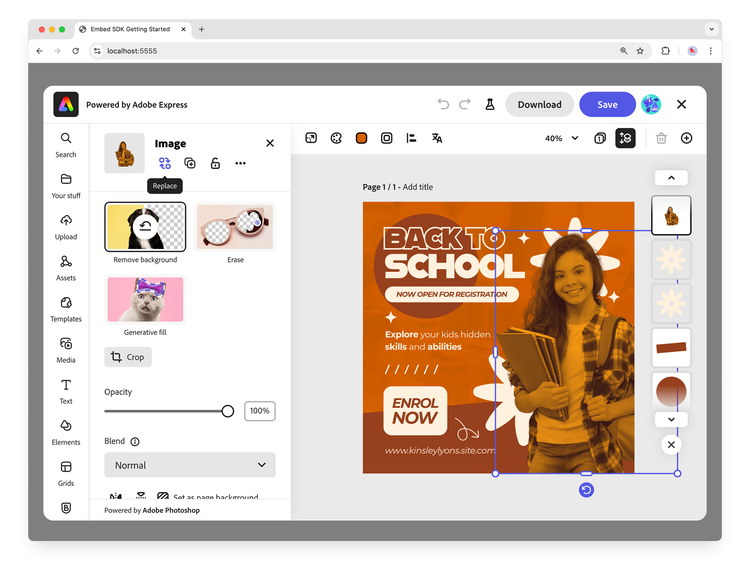

The full Adobe Express application has been integrated! Your users can now create new documents directly from this page and download them locally.

Inspecting the code

The sample project is a simple web application built with Vite that takes care of the entire HTTPS setup and hot reloading. The main code is in the main.js file, where the SDK is imported and initialized:

Copy
// Load the Adobe SDK
await import("https://cc-embed.adobe.com/sdk/v4/CCEverywhere.js");
console.log("CCEverywhere loaded", window.CCEverywhere);
Copied to your clipboard
// Load the Adobe SDK
await import("https://cc-embed.adobe.com/sdk/v4/CCEverywhere.js");
console.log("CCEverywhere loaded", window.CCEverywhere);

Please note that the dynamic import() requires await, to ensure the code is fully loaded before proceeding. Now, the CCEverywhere object is available in the global scope: it is the entry point to the SDK and provides all the necessary methods to create the Adobe Express integration.

Copy
// Host information for the Adobe SDK
const hostInfo = {
  clientId: import.meta.env.VITE_API_KEY,
  appName: "Embed SDK Sample",
};

// Optional configuration parameters (locale, login, etc.)
const configParams = {};
Copied to your clipboard
// Host information for the Adobe SDK
const hostInfo = {
  clientId: import.meta.env.VITE_API_KEY,
  appName: "Embed SDK Sample",
};

// Optional configuration parameters (locale, login, etc.)
const configParams = {};

You must link your integration with the API Key set up earlier to initialize the SDK properly. The hostInfo object holds it in the clientId property, while appName should match your application name. The configParams object is optional and can be used to set additional parameters, such as the locale. You pass those objects to the initialization method:

Copy
const { editor } = await window.CCEverywhere.initialize(
  hostInfo, configParams
);
Copied to your clipboard
const { editor } = await window.CCEverywhere.initialize(
  hostInfo, configParams
);

The editor class contains all the APIs we need. In the sample, we use it to spawn the full Adobe Express experience on the button click:

Copy
document.getElementById("launchExpress").onclick = async () => {
  // Optional document settings (canvas size)
  let docConfig = {};
  // Optional application settings (allowed files, template, etc.)
  let appConfig = {};
  // Optional export settings (label, action type, style, etc.)
  let exportConfig = [];

  editor.create(docConfig, appConfig, exportConfig);
};
Copied to your clipboard
document.getElementById("launchExpress").onclick = async () => {
  // Optional document settings (canvas size)
  let docConfig = {};
  // Optional application settings (allowed files, template, etc.)
  let appConfig = {};
  // Optional export settings (label, action type, style, etc.)
  let exportConfig = [];

  editor.create(docConfig, appConfig, exportConfig);
};

The create() method accepts three options objects, that are optionally used to deal with the document, application, and export settings. We'll cover these in more detail in a future tutorial, but you can check the API reference now for more information.

Next steps

Congratulations! You have successfully set up the Adobe Express Embed SDK in your web application. You've learned how to get the credentials, initialize the SDK, and integrate the full Adobe Express experience into your web page.

What's next for you? Here are a few suggestions:

• Feel free to use this sample project as a starting point for your experiments.
• Check out more tutorials to learn about the Embed SDK's many features.
• The Embed SDK offers a wide range of customization options; you can explore them in the API Reference.
• Visit the changelog page to keep up with the latest updates and improvements.
• Finally, if you get stuck or you just want to share your experience, visit the Adobe Express Embed SDK Community Forum.
