Payment services minicart workflow

These steps describe the additional flow of requests and responses required to place an order after adding a product to your cart with the Payment Services solution enabled.

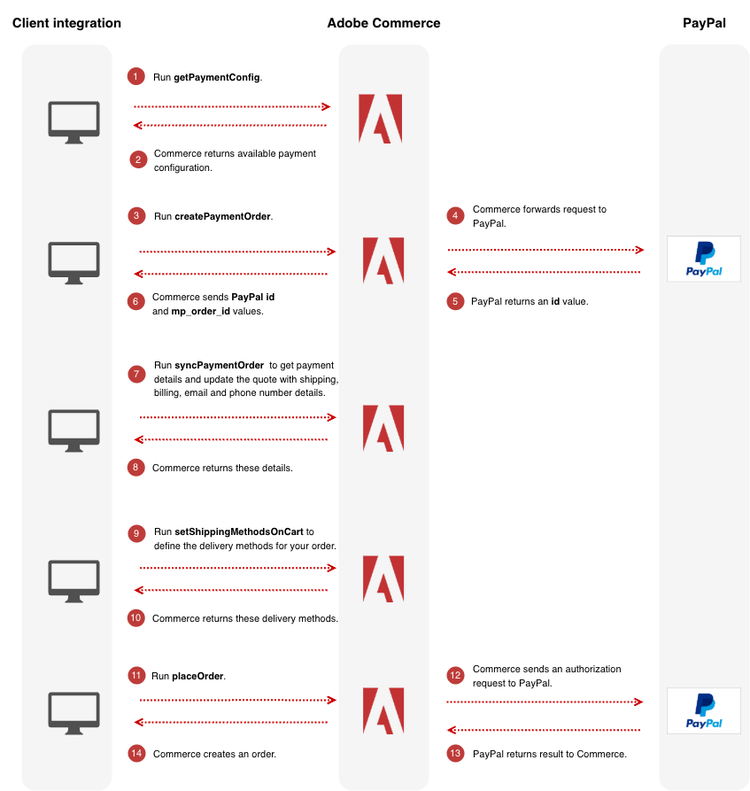

Minicart workflow

1. Run the getPaymentConfig query to fetch the payment configuration needed to render details about PayPal components, such as hosted fields, smart buttons, and Apple Pay.

2. Adobe Commerce returns payment configuration information.

3. Run createPaymentOrder to begin the authorization process.

4. Commerce forwards the request to PayPal.

5. PayPal returns an id value.

6. Commerce generates an order_id and forwards the value in the mp_order_id field and in the PayPal response in the id field.

7. Run the syncPaymentOrder mutation to get payment details and update the quote with shipping, billing, email, and phone number details.

8. Commerce returns details about the payment order.

9. Run the setShippingMethodsOnCartmutation to define the delivery methods for your order.

10. Commerce returns details about the delivery methods for your order.

11. Run the placeOrder mutation.

12. Commerce sends an authorization request to PayPal.

13. PayPal returns the result to Commerce.

14. Commerce creates an order.

setPaymentMethodOnCartInput object

For the PayPal Smart Buttons and Apple Pay payment methods, you do not need to run the setPaymentMethodOnCart mutation. The hosted fields payment method requires that you run the mutation only if one of the following conditions are true:

• You intend to vault a card by setting is_active_payment_token_enabler to true.

• You have a stored payment method checkout where you intend to use a stored card by setting a public_hash value.

In these cases, the payment_method object must contain a payment_services_paypal_hosted_fields object.

payment_services_paypal_hosted_fields object

The payment_services_paypal_hosted_fields can contain the following attributes:

setPaymentMethodOnCart mutation example

The following example sets the payment method to payment_services_paypal_hosted_fields:

Request:

mutation {
    setPaymentMethodOnCart ( input: {
      cart_id: "uocGxUi5H97XFAMhY3s66q4aFYG3Bmdr",
      payment_method: {
        code: "payment_services_paypal_hosted_fields",
        payment_services_paypal_hosted_fields: {
          payment_source: "cc",
          payments_order_id: "mp-order-a4babd34-13d3-4ac0-b1b0-109bb7be1574",
          paypal_order_id: "9R90936863877801D",
          is_active_payment_token_enabler: true
        }
      }
    }
    ) {
       cart {
         id
         selected_payment_method {
           code
         }
       }
    }
  }

Response:

{
  "data": {
    "setPaymentMethodOnCart": {
      "cart": {
        "id": "r8TKHa58b7Y8VaZHLyABNxrEdS8hJJTZ",
        "selected_payment_method": {
          "code": "payment_services_paypal_hosted_fields"
        }
      }
    }
  }
}
