Charts

To dynamically insert a chart in the document, add the chart as placeholder and edit the chart and excel data.

How It Works

To insert a chart in the document, add the chart as a placeholder in the document template. The chart placeholder is transformed into a chart in the output document by providing the chart data in the input JSON data. The following types of graphs are supported:

• Line
• Column
• Pie

Steps to add chart in the document:

• Open your Word document and place the cursor where you want the chart to appear.

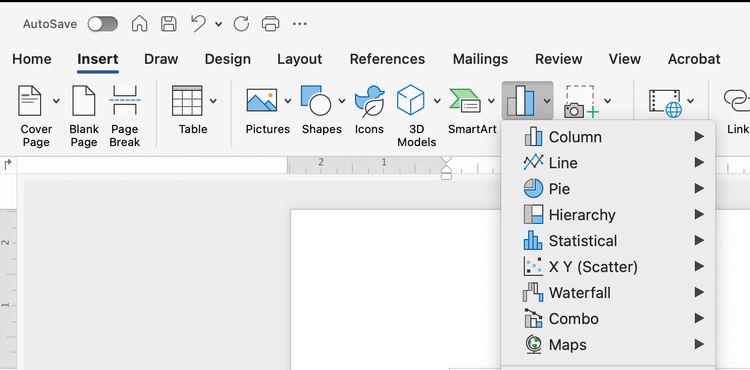

• Go to the “Insert” tab on the Ribbon.
• Click on “Chart” in the Illustrations group.
• Choose the type of chart you want from the list (e.g. column, line, pie) and click “OK”.
• An Excel spreadsheet will open with sample data. Replace this data with your own tags.
• Close the Excel window once you’ve entered your data. The chart in Word will update automatically.

data-slots=text

Line Chart

Steps to insert a line chart in the document:

• Add the line chart as a placeholder in the document template.

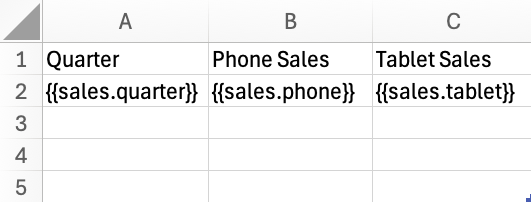

• Edit the chart data in the Excel by right click on chart and select "Edit Data in Excel".

JSON representation of the input data:

{
  "Title": "Sales Data",
  "sales": [
    {
      "quarter": "Q1",
      "phone": 3800,
      "tablet": 2450
    },
    {
      "quarter": "Q2",
      "phone": 4300,
      "tablet": 2700
    },
    {
      "quarter": "Q3",
      "phone": 5100,
      "tablet": 3150
    },
    {
      "quarter": "Q4",
      "phone": 6000,
      "tablet": 3600
    }
  ]
}

Output chart in document after processing.

Column Chart

Steps to insert a column chart in the document:

• Add the column chart as a placeholder in the document template.

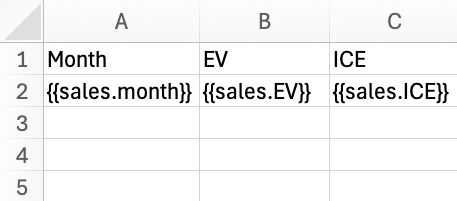

• Edit the chart data in the Excel by right click on chart and select "Edit Data in Excel".

JSON representation of the input data:

{
  "Title": "Vehicle Sales Data",
  "sales": [
    {
      "month": "July",
      "EV": 700000,
      "ICE": 1500000
    },
    {
      "month": "August",
      "EV": 750000,
      "ICE": 1450000
    },
    {
      "month": "September",
      "EV": 800000,
      "ICE": 1400000
    },
    {
      "month": "October",
      "EV": 850000,
      "ICE": 1350000
    }
  ]
}

Output chart in document after processing.

Pie Chart

Steps to insert a pie chart in the document:

• Add the pie chart as a placeholder in the document template.

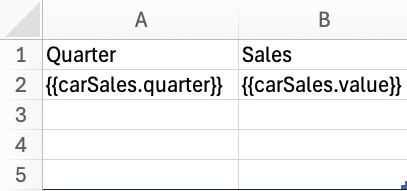

• Edit the chart data in the Excel by right click on chart and select "Edit Data in Excel".

JSON representation of the input data:

{
  "Title": "Car Sales by Quarters",
  "carSales": [
    {
      "quarter": "1st Qtr",
      "value": 1500
    },
    {
      "quarter": "2nd Qtr",
      "value": 2000
    },
    {
      "quarter": "3rd Qtr",
      "value": 1800
    },
    {
      "quarter": "4th Qtr",
      "value": 2200
    }
  ]
}

Output chart in document after processing.
