Quickstart for PDF Extract API (Node.js)

To get started using Adobe PDF Extract API, let's walk through a simple scenario - taking an input PDF document and running PDF Extract API against it. Once the PDF has been extracted, we'll parse the results and report on any major headers in the document. In this guide, we will walk you through the complete process for creating a program that will accomplish this task.

Prerequisites

To complete this guide, you will need:

Node.js - Node.js version 14.0 or higher is required.
An Adobe ID. If you do not have one, the credential setup will walk you through creating one.
A way to edit code. No specific editor is required for this guide.

Step One: Getting credentials

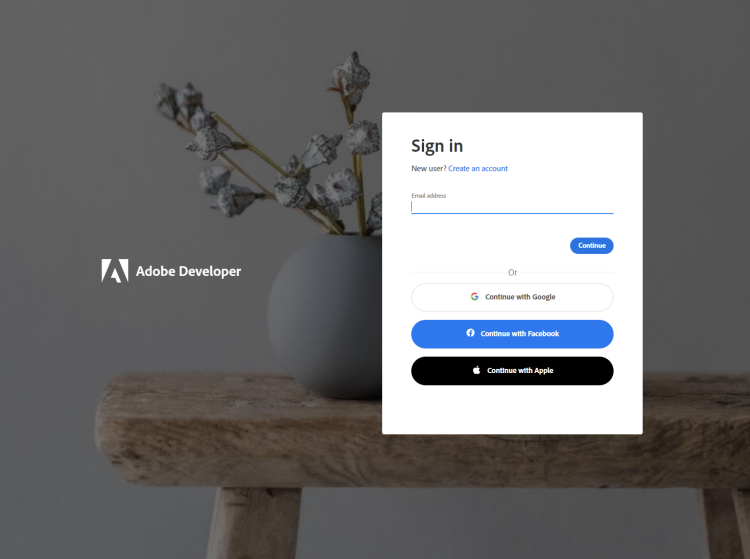

1) To begin, open your browser to https://acrobatservices.adobe.com/dc-integration-creation-app-cdn/main.html?api=pdf-extract-api. If you are not already logged in to Adobe.com, you will need to sign in or create a new user. Using a personal email account is recommend and not a federated ID.

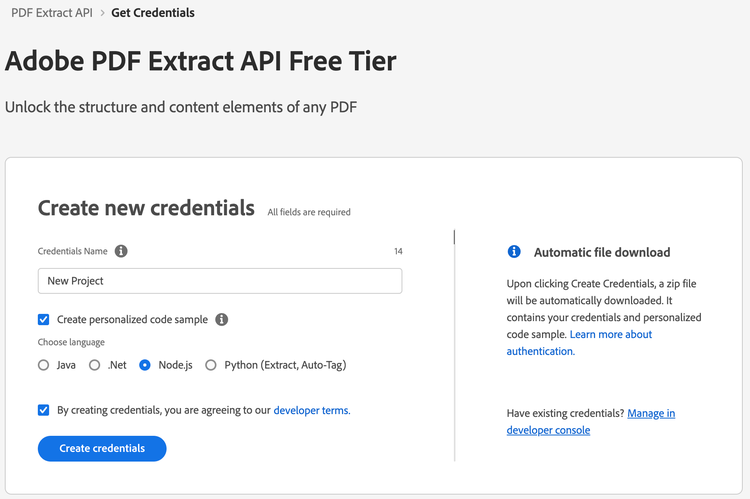

2) After registering or logging in, you will then be asked to name your new credentials. Use the name, "New Project".

3) Change the "Choose language" setting to "Node.js".

4) Also note the checkbox by, "Create personalized code sample." This will include a large set of samples along with your credentials. These can be helpful for learning more later.

5) Click the checkbox saying you agree to the developer terms and then click "Create credentials."

Project setup

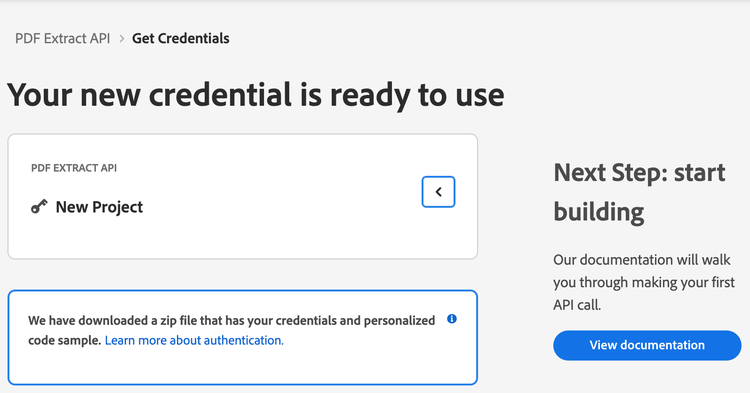

6) After your credentials are created, they are automatically downloaded:

alt

Step Two: Setting up the project

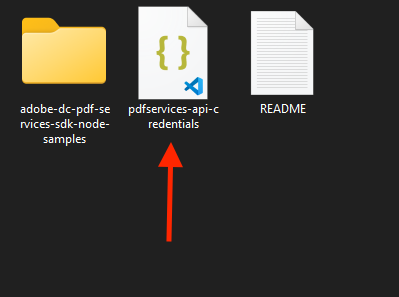

1) In your Downloads folder, find the ZIP file with your credentials: PDFServicesSDK-Node.jsSamples.zip. If you unzip that archive, you will find a folder of samples and the pdfservices-api-credentials.json file.

alt

2) Take the pdfservices-api-credentials.json file and place it in a new directory. Remember that these credential files are important and should be stored safely.

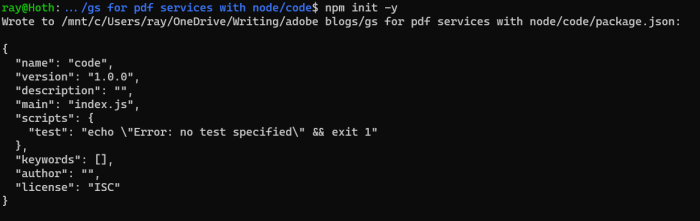

3) At the command line, change to the directory you created, and initialize a new Node.js project with npm init -y

alt

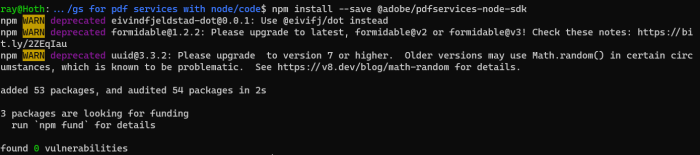

4) Install the Adobe PDF Services Node.js SDK by typing npm install --save @adobe/pdfservices-node-sdk at the command line.

alt

5) Install a package to help us work with ZIP files. Type npm install --save adm-zip.

At this point, we've installed the Node.js SDK for Adobe PDF Services API as a dependency for our project and have copied over our credentials files.

Our application will take a PDF, Adobe Extract API Sample.pdf (downloadable from here) and extract it's contents. The results will be saved as a ZIP file, ExtractTextInfoFromPDF.zip. We will then parse the results from the ZIP and print out the text of any H1 headers found in the PDF.

6) In your editor, open the directory where you previously copied the credentials. Create a new file, extract.js.

Now you're ready to begin coding.

Step Three: Creating the application

1) We'll begin by including our required dependencies:

const PDFServicesSdk = require('@adobe/pdfservices-node-sdk');
const fs = require('fs');
const AdmZip = require('adm-zip');
Copied to your clipboard
const PDFServicesSdk = require('@adobe/pdfservices-node-sdk');
const fs = require('fs');
const AdmZip = require('adm-zip');

The first line includes the Adobe PDF Services Node.js SDK. The second third include Node's filesystem package as well as the package that will work with the ZIP file returned from the API.

2) Now let's define our input and output:

const OUTPUT_ZIP = './ExtractTextInfoFromPDF.zip';

//Remove if the output already exists.
if(fs.existsSync(OUTPUT_ZIP)) fs.unlinkSync(OUTPUT_ZIP);

const INPUT_PDF = './Adobe Extract API Sample.pdf';
Copied to your clipboard
const OUTPUT_ZIP = './ExtractTextInfoFromPDF.zip';

//Remove if the output already exists.
if(fs.existsSync(OUTPUT_ZIP)) fs.unlinkSync(OUTPUT_ZIP);

const INPUT_PDF = './Adobe Extract API Sample.pdf';

This defines what our output ZIP will be and optionally deletes it if it already exists. Then we define what PDF will be extracted. (You can download the source we used here.) In a real application, these values would be typically be dynamic.

3) Set the environment variables PDF_SERVICES_CLIENT_ID and PDF_SERVICES_CLIENT_SECRET by running the following commands and replacing placeholders YOUR CLIENT ID and YOUR CLIENT SECRET with the credentials present in pdfservices-api-credentials.json file:

Windows:
- set PDF_SERVICES_CLIENT_ID=<YOUR CLIENT ID>
- set PDF_SERVICES_CLIENT_SECRET=<YOUR CLIENT SECRET>
MacOS/Linux:
- export PDF_SERVICES_CLIENT_ID=<YOUR CLIENT ID>
- export PDF_SERVICES_CLIENT_SECRET=<YOUR CLIENT SECRET>

4) Next, we setup the SDK to use our credentials.

const credentials =  PDFServicesSdk.Credentials
    .servicePrincipalCredentialsBuilder()
    .withClientId(process.env.PDF_SERVICES_CLIENT_ID)
    .withClientSecret(process.env.PDF_SERVICES_CLIENT_SECRET)
    .build();

// Create an ExecutionContext using credentials
const executionContext = PDFServicesSdk.ExecutionContext.create(credentials);
Copied to your clipboard
const credentials =  PDFServicesSdk.Credentials
    .servicePrincipalCredentialsBuilder()
    .withClientId(process.env.PDF_SERVICES_CLIENT_ID)
    .withClientSecret(process.env.PDF_SERVICES_CLIENT_SECRET)
    .build();

// Create an ExecutionContext using credentials
const executionContext = PDFServicesSdk.ExecutionContext.create(credentials);

This code both points to the credentials downloaded previously as well as sets up an execution context object that will be used later.

5) Now, let's create the operation:

// Create a new operation instance.
const extractPDFOperation = PDFServicesSdk.ExtractPDF.Operation.createNew(),
    input = PDFServicesSdk.FileRef.createFromLocalFile(
        INPUT_PDF,
        PDFServicesSdk.ExtractPDF.SupportedSourceFormat.pdf
    );

// Build extractPDF options
const options = new PDFServicesSdk.ExtractPDF.options.ExtractPdfOptions.Builder()
        .addElementsToExtract(PDFServicesSdk.ExtractPDF.options.ExtractElementType.TEXT).build()

extractPDFOperation.setInput(input);
extractPDFOperation.setOptions(options);
Copied to your clipboard
// Create a new operation instance.
const extractPDFOperation = PDFServicesSdk.ExtractPDF.Operation.createNew(),
    input = PDFServicesSdk.FileRef.createFromLocalFile(
        INPUT_PDF,
        PDFServicesSdk.ExtractPDF.SupportedSourceFormat.pdf
    );

// Build extractPDF options
const options = new PDFServicesSdk.ExtractPDF.options.ExtractPdfOptions.Builder()
        .addElementsToExtract(PDFServicesSdk.ExtractPDF.options.ExtractElementType.TEXT).build()

extractPDFOperation.setInput(input);
extractPDFOperation.setOptions(options);

This set of code defines what we're doing (an Extract operation), points to our local file and specifies the input is a PDF, and then defines options for the Extract call. PDF Extract API has a few different options, but in this example, we're simply asking for the most basic of extractions, the textual content of the document.

6) The next code block executes the operation:

// Execute the operation
extractPDFOperation.execute(executionContext)
    .then(result => result.saveAsFile(OUTPUT_ZIP))
    .then(() => {
        console.log('Successfully extracted information from PDF.');
    })
    .catch(err => console.log(err));
Copied to your clipboard
// Execute the operation
extractPDFOperation.execute(executionContext)
    .then(result => result.saveAsFile(OUTPUT_ZIP))
    .then(() => {
        console.log('Successfully extracted information from PDF.');
    })
    .catch(err => console.log(err));

This code runs the Extraction process and then stores the result zip to the file system.

7) In this block, we read in the ZIP file, extract the JSON result file, and parse it:

let zip = new AdmZip(OUTPUT_ZIP);
let jsondata = zip.readAsText('structuredData.json');
let data = JSON.parse(jsondata);
Copied to your clipboard
let zip = new AdmZip(OUTPUT_ZIP);
let jsondata = zip.readAsText('structuredData.json');
let data = JSON.parse(jsondata);

8) Finally we can loop over the result and print out any found element that is an H1:

data.elements.forEach(element => {
    if(element.Path.endsWith('/H1')) {
        console.log(element.Text);
    }
});
Copied to your clipboard
data.elements.forEach(element => {
    if(element.Path.endsWith('/H1')) {
        console.log(element.Text);
    }
});

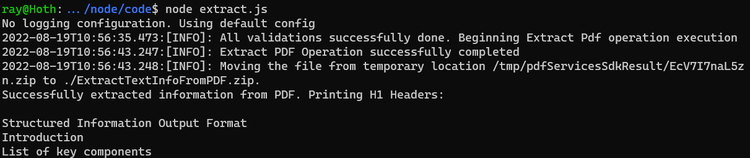

Example running at the command line

Here's the complete application (extract.js):

const PDFServicesSdk = require('@adobe/pdfservices-node-sdk');
const fs = require('fs');
const AdmZip = require('adm-zip');

const OUTPUT_ZIP = './ExtractTextInfoFromPDF.zip';

//Remove if the output already exists.
if(fs.existsSync(OUTPUT_ZIP)) fs.unlinkSync(OUTPUT_ZIP);

const INPUT_PDF = './Adobe Extract API Sample.pdf';

const credentials =  PDFServicesSdk.Credentials
        .servicePrincipalCredentialsBuilder()
        .withClientId(process.env.PDF_SERVICES_CLIENT_ID)
        .withClientSecret(process.env.PDF_SERVICES_CLIENT_SECRET)
        .build();

// Create an ExecutionContext using credentials
const executionContext = PDFServicesSdk.ExecutionContext.create(credentials);

// Create a new operation instance.
const extractPDFOperation = PDFServicesSdk.ExtractPDF.Operation.createNew(),
    input = PDFServicesSdk.FileRef.createFromLocalFile(
        INPUT_PDF,
        PDFServicesSdk.ExtractPDF.SupportedSourceFormat.pdf
    );

// Build extractPDF options
const options = new PDFServicesSdk.ExtractPDF.options.ExtractPdfOptions.Builder()
        .addElementsToExtract(PDFServicesSdk.ExtractPDF.options.ExtractElementType.TEXT).build()


extractPDFOperation.setInput(input);
extractPDFOperation.setOptions(options);

// Execute the operation
extractPDFOperation.execute(executionContext)
    .then(result => result.saveAsFile(OUTPUT_ZIP))
    .then(() => {
        console.log('Successfully extracted information from PDF. Printing H1 Headers:\n');
        let zip = new AdmZip(OUTPUT_ZIP);
        let jsondata = zip.readAsText('structuredData.json');
        let data = JSON.parse(jsondata);
        data.elements.forEach(element => {
            if(element.Path.endsWith('/H1')) {
                console.log(element.Text);
            }
        });

    })
    .catch(err => console.log(err));
Copied to your clipboard
const PDFServicesSdk = require('@adobe/pdfservices-node-sdk');
const fs = require('fs');
const AdmZip = require('adm-zip');

const OUTPUT_ZIP = './ExtractTextInfoFromPDF.zip';

//Remove if the output already exists.
if(fs.existsSync(OUTPUT_ZIP)) fs.unlinkSync(OUTPUT_ZIP);

const INPUT_PDF = './Adobe Extract API Sample.pdf';

const credentials =  PDFServicesSdk.Credentials
        .servicePrincipalCredentialsBuilder()
        .withClientId(process.env.PDF_SERVICES_CLIENT_ID)
        .withClientSecret(process.env.PDF_SERVICES_CLIENT_SECRET)
        .build();

// Create an ExecutionContext using credentials
const executionContext = PDFServicesSdk.ExecutionContext.create(credentials);

// Create a new operation instance.
const extractPDFOperation = PDFServicesSdk.ExtractPDF.Operation.createNew(),
    input = PDFServicesSdk.FileRef.createFromLocalFile(
        INPUT_PDF,
        PDFServicesSdk.ExtractPDF.SupportedSourceFormat.pdf
    );

// Build extractPDF options
const options = new PDFServicesSdk.ExtractPDF.options.ExtractPdfOptions.Builder()
        .addElementsToExtract(PDFServicesSdk.ExtractPDF.options.ExtractElementType.TEXT).build()


extractPDFOperation.setInput(input);
extractPDFOperation.setOptions(options);

// Execute the operation
extractPDFOperation.execute(executionContext)
    .then(result => result.saveAsFile(OUTPUT_ZIP))
    .then(() => {
        console.log('Successfully extracted information from PDF. Printing H1 Headers:\n');
        let zip = new AdmZip(OUTPUT_ZIP);
        let jsondata = zip.readAsText('structuredData.json');
        let data = JSON.parse(jsondata);
        data.elements.forEach(element => {
            if(element.Path.endsWith('/H1')) {
                console.log(element.Text);
            }
        });

    })
    .catch(err => console.log(err));

Next Steps

Now that you've successfully performed your first operation, review the documentation for many other examples and reach out on our forums with any questions. Also remember the samples you downloaded while creating your credentials also have many demos.
